The Steel Swimming Pool Fence Panels made from Steel or wrought iron rail tube with size 38x25x1.5mm tube, Picket tube with round 16or19mm, thickness from 1.0 to 1.5mm, Punched holes in the rail tube, then weld the 2 tubes together with silicon bronze, will not rusted for many years. Finally powder coated to black.
We provide customization service per your sketch or draft.
XINHUI Pool Fence Benefits:
1. Anti-corrosion, anti-rust
2. Durable and long-lasting
3. Weather resistance
4. Fully welded
5. Smooth and beautiful surface
| Product Name: | POOL FENCE | ||||
| Material: | Hot-dipped Galvanized Steel tube | ||||
| Shape of tube section | Square | ||||
| Surface Treatment: | Hot dipped galvanized—Zinc Phosphate—Zinc rich epoxy Powder coating – Polyester Color Powder Coating | ||||
| Zinc Steel fence Processing | Cut Shot—Punching Holes—Acid washing—Rich zinc Powder coating – Polyester Color Powder Coating—Assembly – Packing | ||||
| Color | Black, White, Coffee, Grey, Blue, Green etc ( according customers require) | ||||
| Feature: | Maintenance free,Rust-proof,solid structure,Eco friendly | ||||
| Installation mode | Assembling (without welding) | ||||

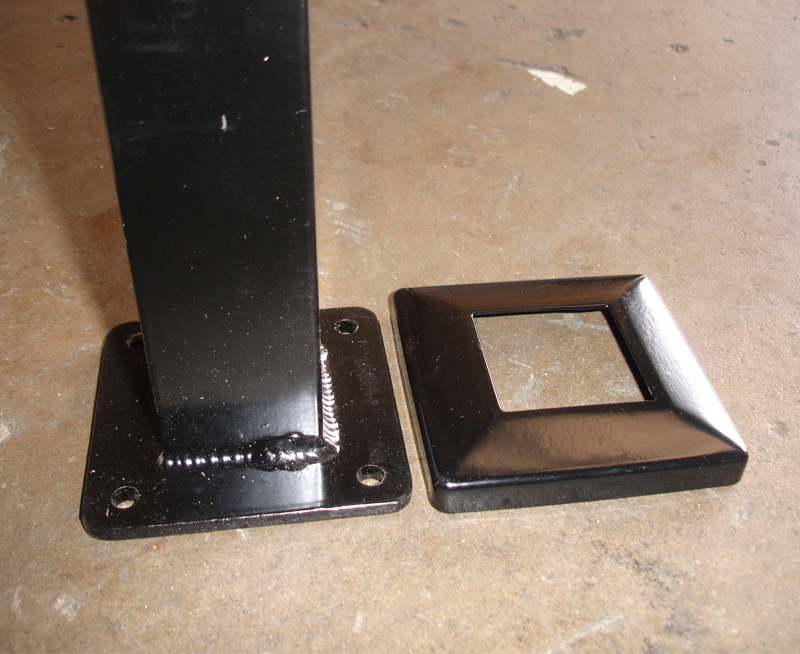

| Accessory | Security bolt& nuts , Connector, Decrative part ,Gasket, Cover for post, Base plate, Snap Spring | ||||
| Warranty | 20 Years | ||||
| Packing: | Thin Film/Piece, Bubble Film/Unit inside, Woven Bag/Unit outside, Pallet . | ||||
| Techniacal Date | |||||
| RAILS(mm)Horizontal tube | PICKET (mm)Vertical tube | POST (mm) | CERTERSPACE (mm) | SIZE (mm) | |
| 32*32 (0.8-2.0)40*40*(0.8-2.0)45*45*(0.8-2.0)50*50*(0.8-2.0)38*25*(0.8-2.0) | 16*16*(0.8-1.5)19*19*(0.8-1.5)20*20*(0.8-1.5)25*25*(0.8-1.5)20*40*(0.8-1.5) | 50*50*(1.2-2.0)60*60*(1.2-2.0)65*65*(1.2-2.0)75*75*(1.2-2.0)80*80*(1.2-2.0) | 110mm116mm120mm124mm130mm | Height: 1000-2500Width: 2950 | |
| FOR MORE SPECIFICATIONS WE CAN PRODUCE ACCORDING CUSTOMER’S REQUIREMENTS | |||||
