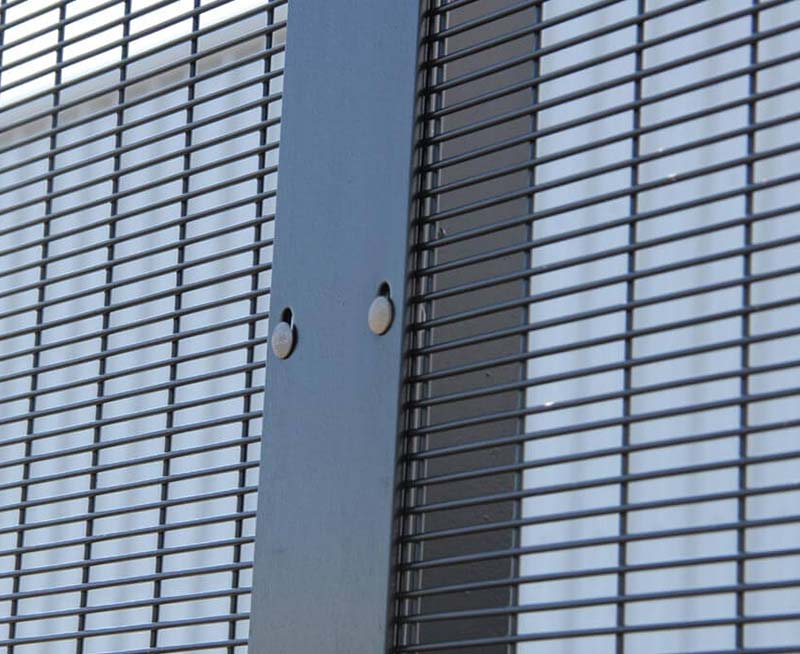

The 358 Fence, also called anti-climb fence, climb resistant mesh, prison fence,358 flat beam prison mesh, high security fence, the panels of the fence are welded together with its small apertures and welds at each intersection eliminate foot and finger holds, prevent objects being passed through and is particularly effective against the use of conventional hand cutting tools.
The 358 Fence, also called anti-climb fence, climb resistant mesh, prison fence,358 flat beam prison mesh, high security fence, the panels of the fence are welded together with its small apertures and welds at each intersection eliminate foot and finger holds, prevent objects being passed through and is particularly effective against the use of conventional hand cutting tools.
The 358 prison fence is by far the most secure and rigid of all mesh systems. This prison mesh is stylish yet also provides a good level of privacy compared to other mesh systems.
Details of the 358 fence:
Mesh apertures: 12.7*76.2mm
Wire diamter: 4mm
Post options: Over length in concrete or base plated to bolt on concrete
Post size: 60*60mm square steel tube or other sizes as required
Surface treatment: Galvanized, Galfan zinc coating, Powder coating
Colors: Black, Green, Gray. Other colors available if required.
Usual Measurements as follows:
| Height (mm) | Post Centres (mm) | Post Dimensions (mm) | Overall Post Length (mm) |
| 1270 | 2440 | 80 x 60 | 1900 |
| 2134 | 2440 | 80 x 60 | 2900 |
| 2440 | 2440 | 80 x 60 | 3300 |
| 3000 | 2440 | 80 x 60 | 3800 |
| 4200 | 2440 | 120 x 120 square | 5100 |
| 5210 | 2440 | 150 x 150 | 6200 |
