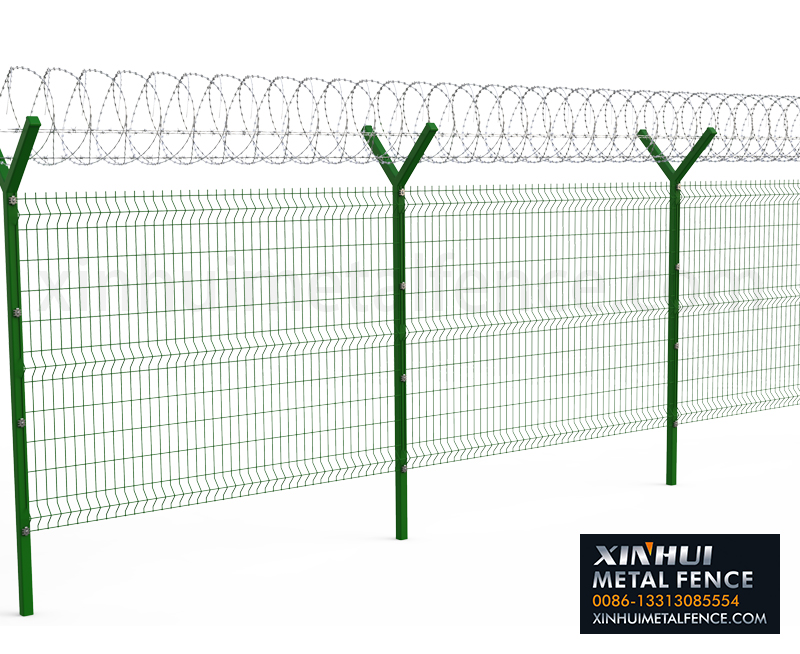

3D Panel Fence with Y Post Barb Razor on Top

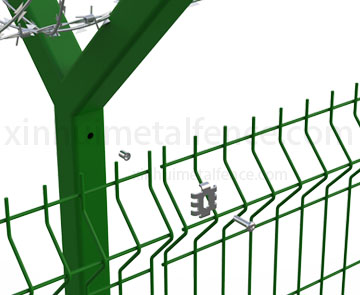

With Y Crank Posts which can attach the barb razor roll and barbed wires on them

Bring higher security ability of the fence

Surface Treatment: Glavnized or PVC coated

Fence height and length are customized.

Share:
Detailed Pictures:
Product Description :

3D Panel fencing is designed for industrial application but it can also be used at sports fields or in the private sectors.The 3D curves on the wires provide great strength, resistance and stability. The wide selection of shades allows adjusting the design of fencing to any individual requirement of the customer and to the architectural requirements of the construction.
The posts for the 3D panel fence can be square tube post, rectangular tube posts, and special post called peach post. Post heights from 1500 mm to 4000 mm.



Characteristic of 3D panel fence:

   Corrosion resistance

   Aging resistance

   Sunshine resistance

   Firm and anti-theft



Details of the 3D panel fence:

Material: Low carbon steel wire Q195 Q235

Processing method: welded

Panel Classification:

   I. Black wire welded mesh + pvc coated;

  II. Galvanized welded mesh + pvc coated;

  III. Hot dipped galvanized welded mesh + pvc coated.

  (PVC coated colors: dark green, light green, blue, yellow, white, black, orange and red, etc.)


 Welded mesh panel Mesh size60mmx120mm, 70mmx150mm, 80mmx160mm
Wire diameter3.5mm-5.0mm
Panel size1.8mx3m, three or four bends
 Peach shape postPost size70mmx100mm, 75mmx150mm
Wall thickness0.8mm-1.5mm
Height1.8m include flange, total 2.1m (30cm embedded)
Distance2m-3m
Fence ColorsDark green, grass green, red, white, black, blue and yellow etc.
Customization  accepted
